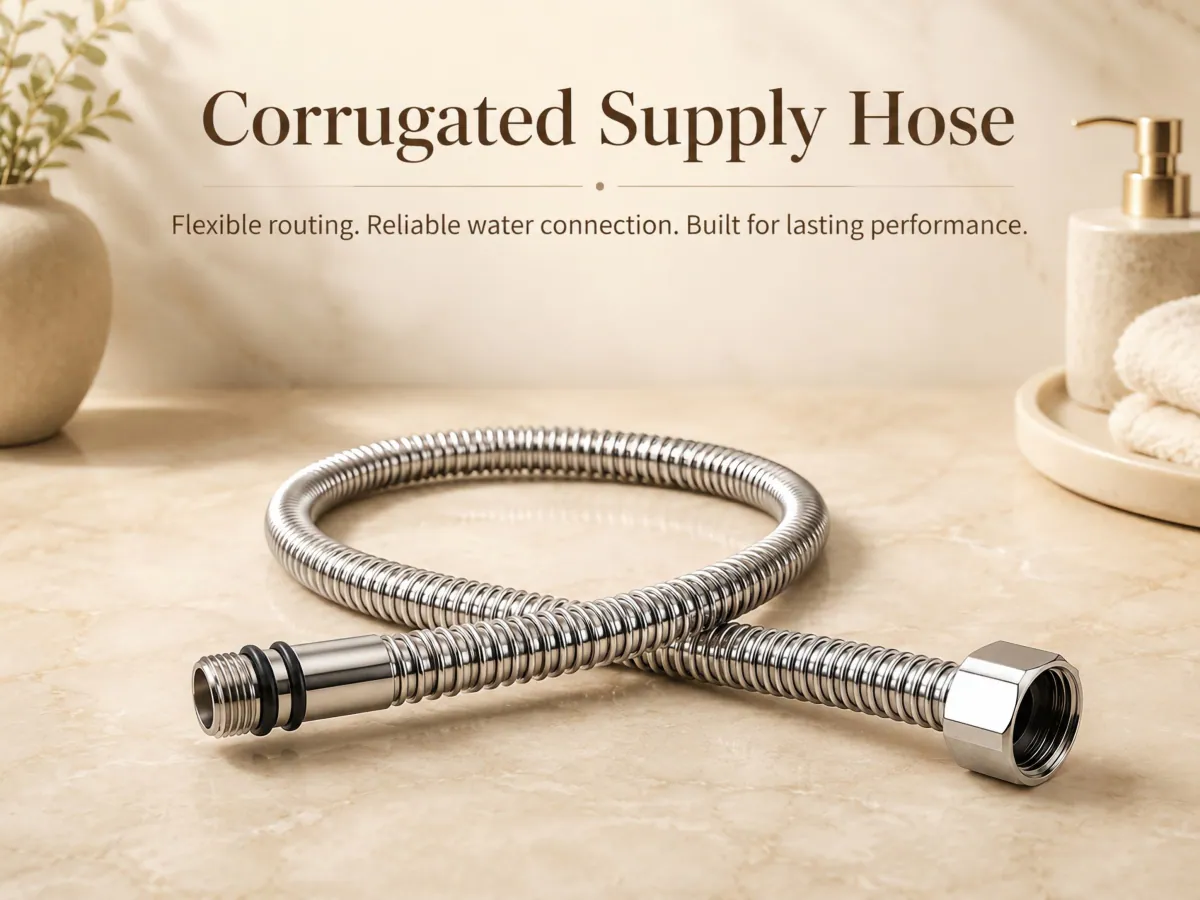

One-Piece Metal Water Path
The corrugated 304 stainless steel tube carries water without a separate rubber inner hose.

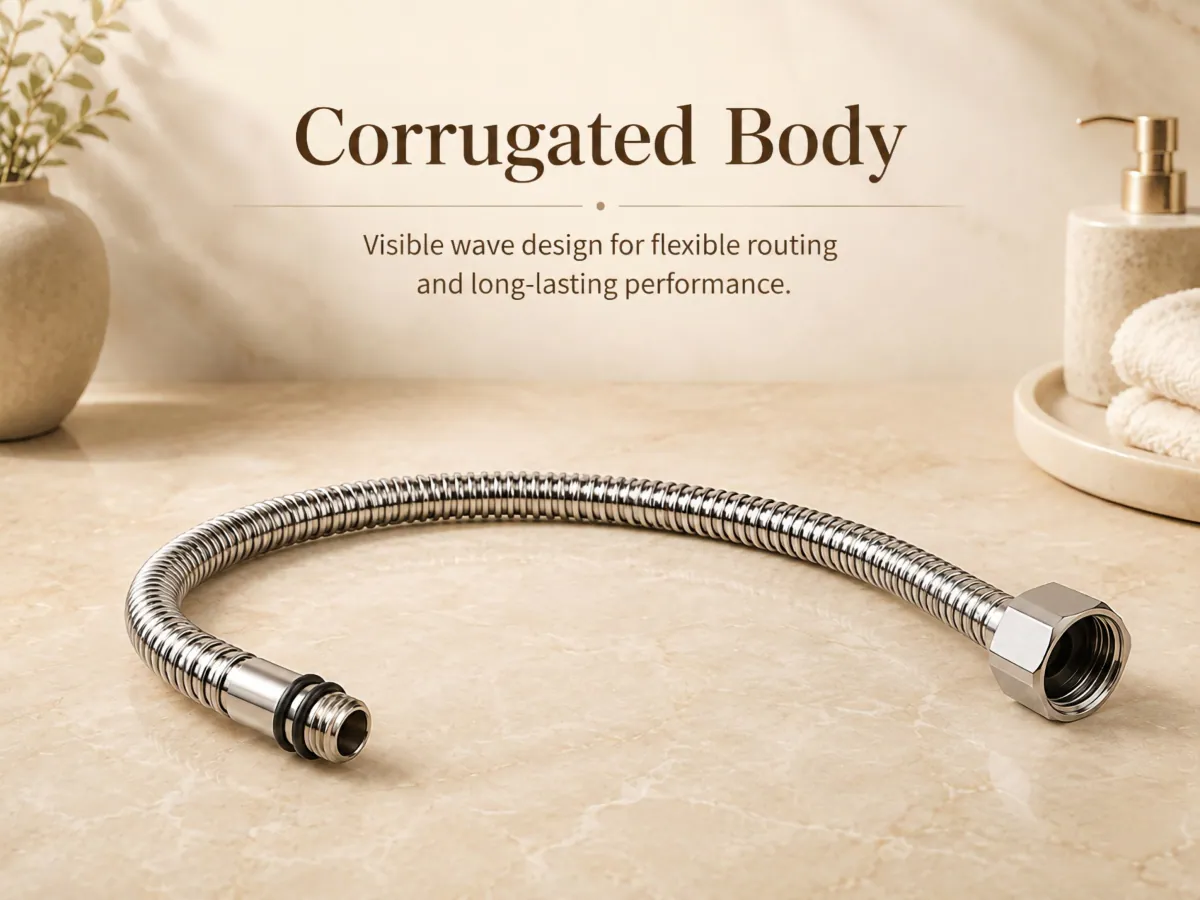

01 / 05Shapeable Wave Structure

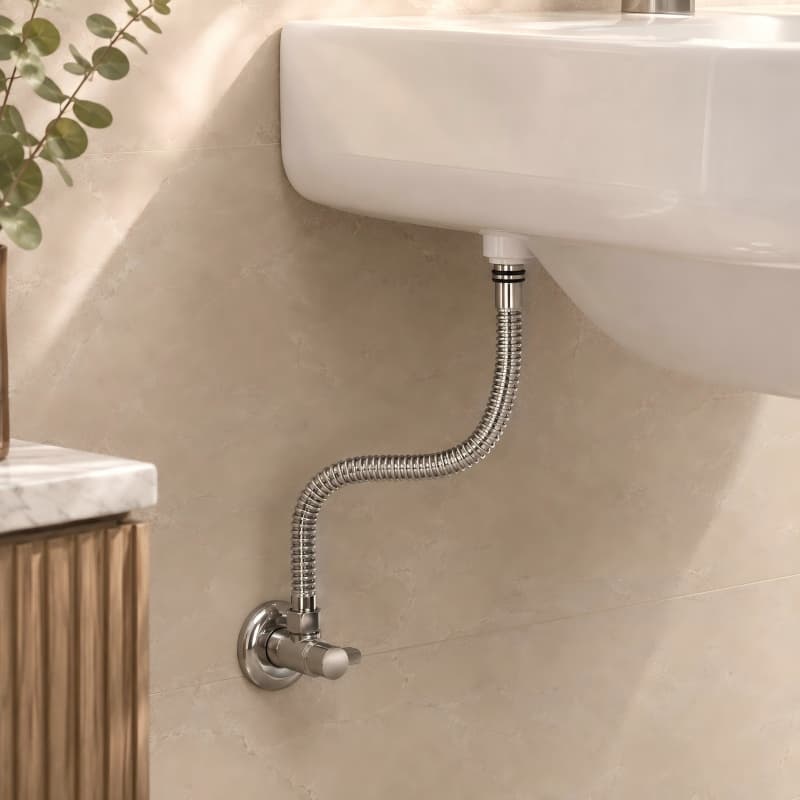

Broad corrugations allow the connector to curve between the faucet body and the supply fitting.

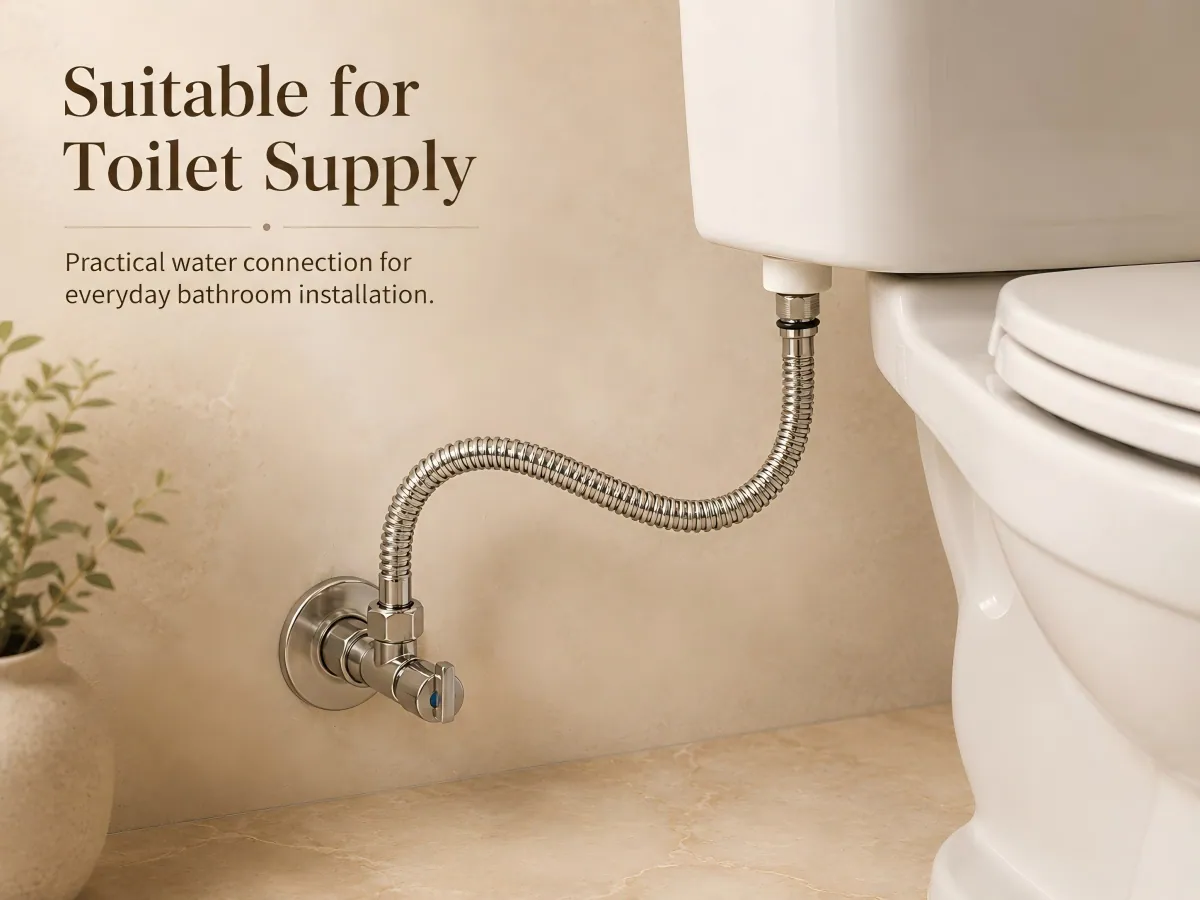

Higher Temperature Range
The 0-120 °C range suits hot- and cold-water faucet connection requirements.

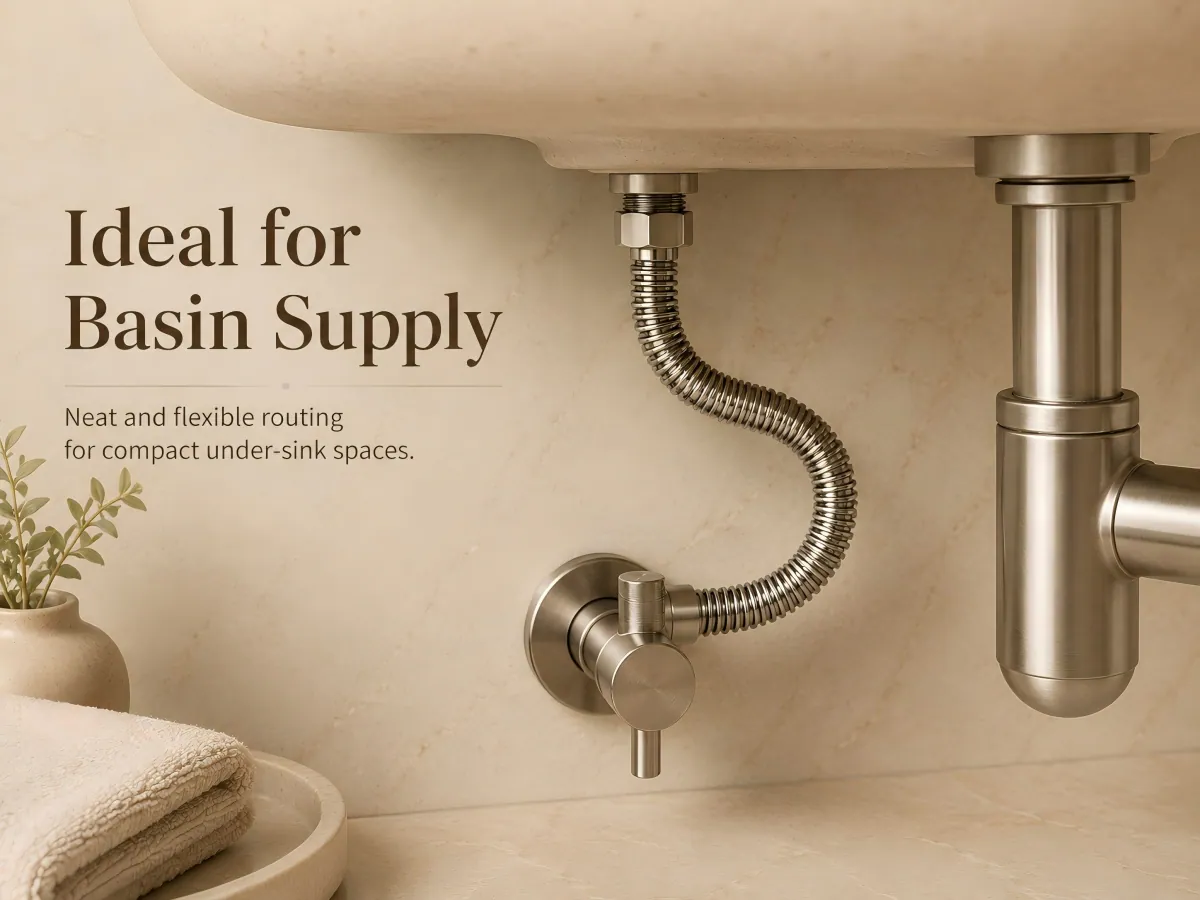

Multiple Connection Lengths
Six standard options help match different distances inside basin and kitchen cabinets.
Product presentation

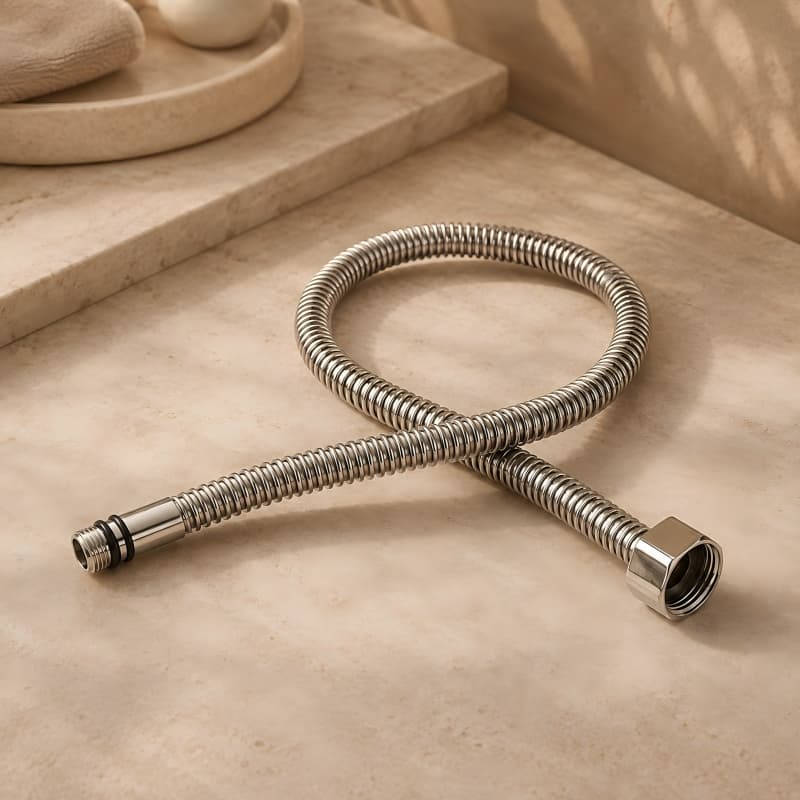

Explore the 304 stainless steel corrugated faucet hose in detail.

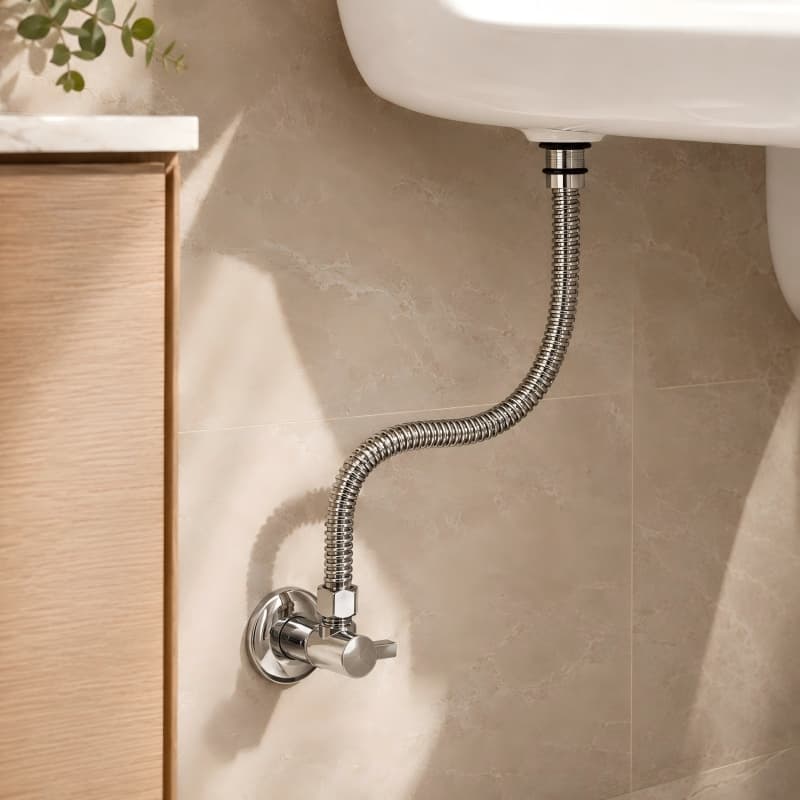

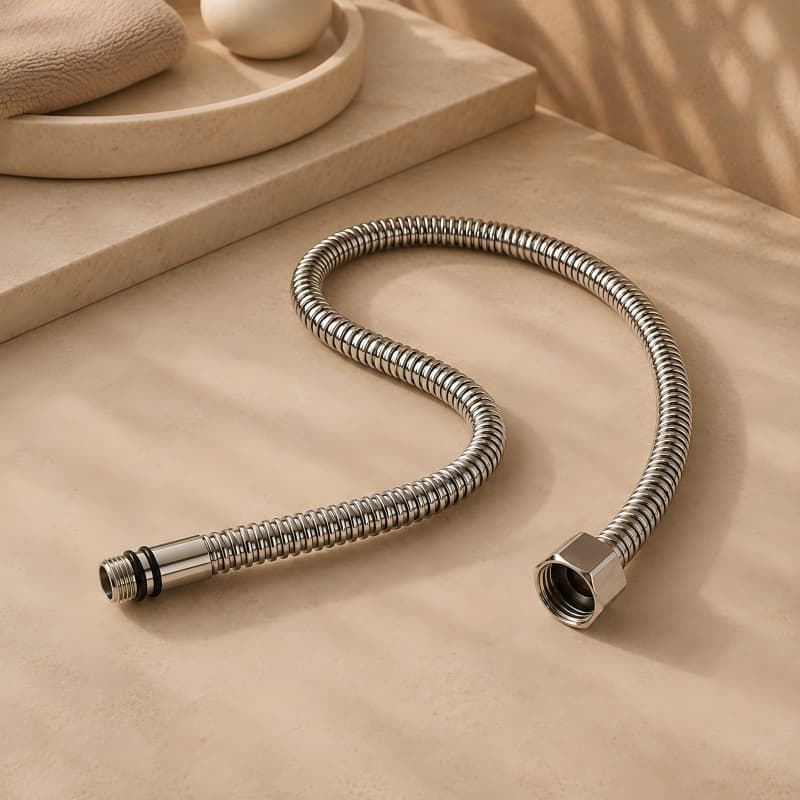

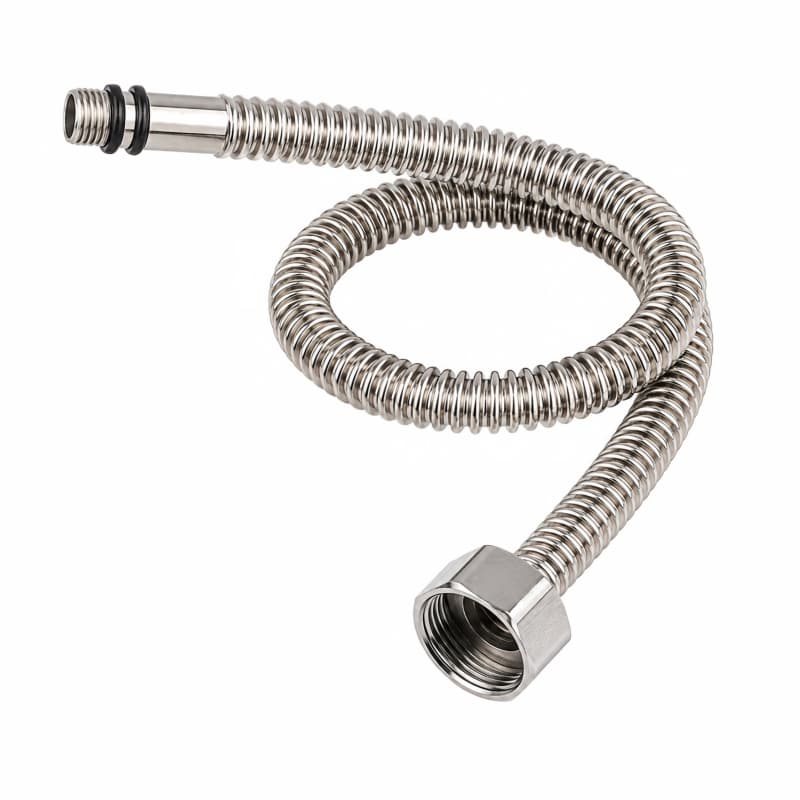

The faucet end is an M10 brass male rod with a sealing ring, while the supply side uses a G1/2 female connector with a hexagonal nut. This arrangement matches common unequal-end faucet supply layouts. The metal tube should be shaped in a broad curve rather than folded sharply during installation.
Technical specifications
Confirmed data for buyer comparison.
Published values are based on the approved product specification. Share your order requirements for a tailored quotation.
Send your target order details →Product TypeCorrugated Faucet Hose
Tube Material304 Stainless Steel
Inner StructureNo Rubber Inner Tube
Faucet EndM10 Brass Male with Seal
Supply EndG1/2 Female Hex Nut
Working Pressure1.0-1.6 MPa
Burst Pressure>=4.0 MPa
Applicable Temperature0-120 °C
Length Options40/50/60/80/100/120 cm
ApplicationBasin and Kitchen Faucets
Compare the range
Compare closely related products.
Review the current model beside published alternatives from the same subcategory. When fewer matches are available, the selection expands within Water, Drainage & Hoses.
Approved specifications“Not listed” means the value is absent from that product record.
Current productFYS-79
304 Stainless Steel Corrugated Faucet Hose
Flexible HosesFYS-73
304 Stainless Steel Braided Water Inlet Hose
Flexible HosesFYS-74
304 Stainless Steel Double-End Shower Hose
Product Type
Corrugated Faucet Hose
Water Inlet Hose
Double-End Shower Hose
Application
Basin and Kitchen Faucets
Multiple Water Fixtures
Not listed
Structure
Not listed
Braided Hose
Flexible Metal Coil
Tube Material
304 Stainless Steel
Not listed
Not listed
Inner Structure
No Rubber Inner Tube
Not listed
Not listed
Faucet End
M10 Brass Male with Seal
Not listed
Not listed
Continue browsing
View all products ↗Explore other product categories.
Showers & Shower SystemsFYS-01
High Pressure Single Function Shower Head
Exposed Showers
Faucets & MixersFYS-19
Single Cold Basin Faucet
Basin Faucets
Valves, Bidets & Commercial WashroomFYS-39
Quick-Open Angle Valve
Quick-Open Angle Valves
Toilets & Squat PansFYS-82
Dual-Flush One-Piece Siphonic Toilet
One-Piece Toilets
Buyer applications
A focused platform for repeatable sourcing programs.
Review the applicable sourcing programs and configurable OEM options for this product.
Suitable for
- Bathroom and shower installations
- Replacement and renovation projects
- Wholesale plumbing supply
OEM options
- Order specifications reviewed before production
Product RFQ
Tell us what this product needs to achieve.
Reference 79 is attached automatically. Add your quantity, destination market, compliance needs, target cost, packaging and schedule.
Buyer FAQ
Questions buyers ask before ordering.
What are the two connection types?
The faucet side is M10 male, while the supply end uses a G1/2 female connector.
What operating pressure applies?
Working pressure is 1.0-1.6 MPa, with burst pressure of at least 4.0 MPa.
How should the metal hose be routed?
Form a broad curve between the fittings and avoid folding the corrugated tube sharply.
