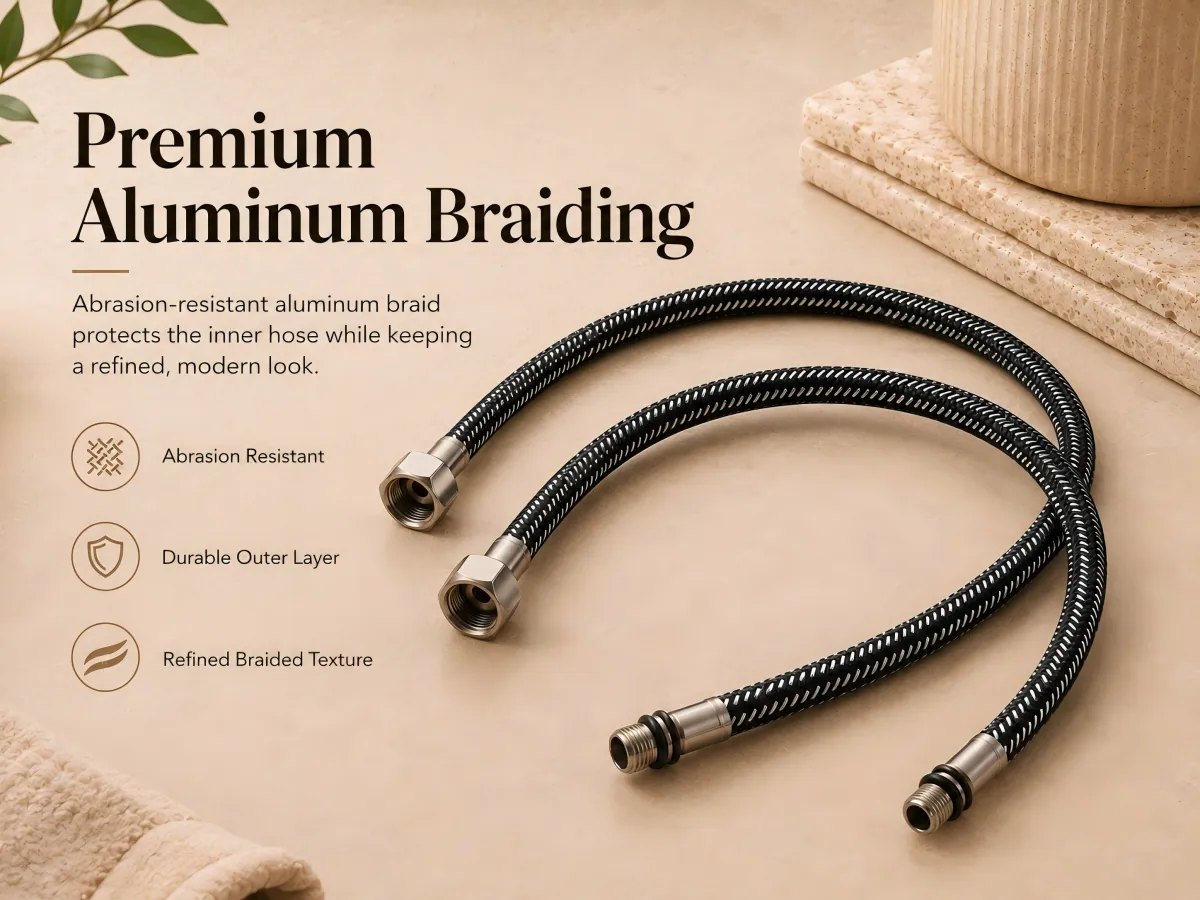

Distinct Black Braided Finish
The aluminum-and-nylon weave gives the faucet hose a dark surface that is easy to identify below the basin.

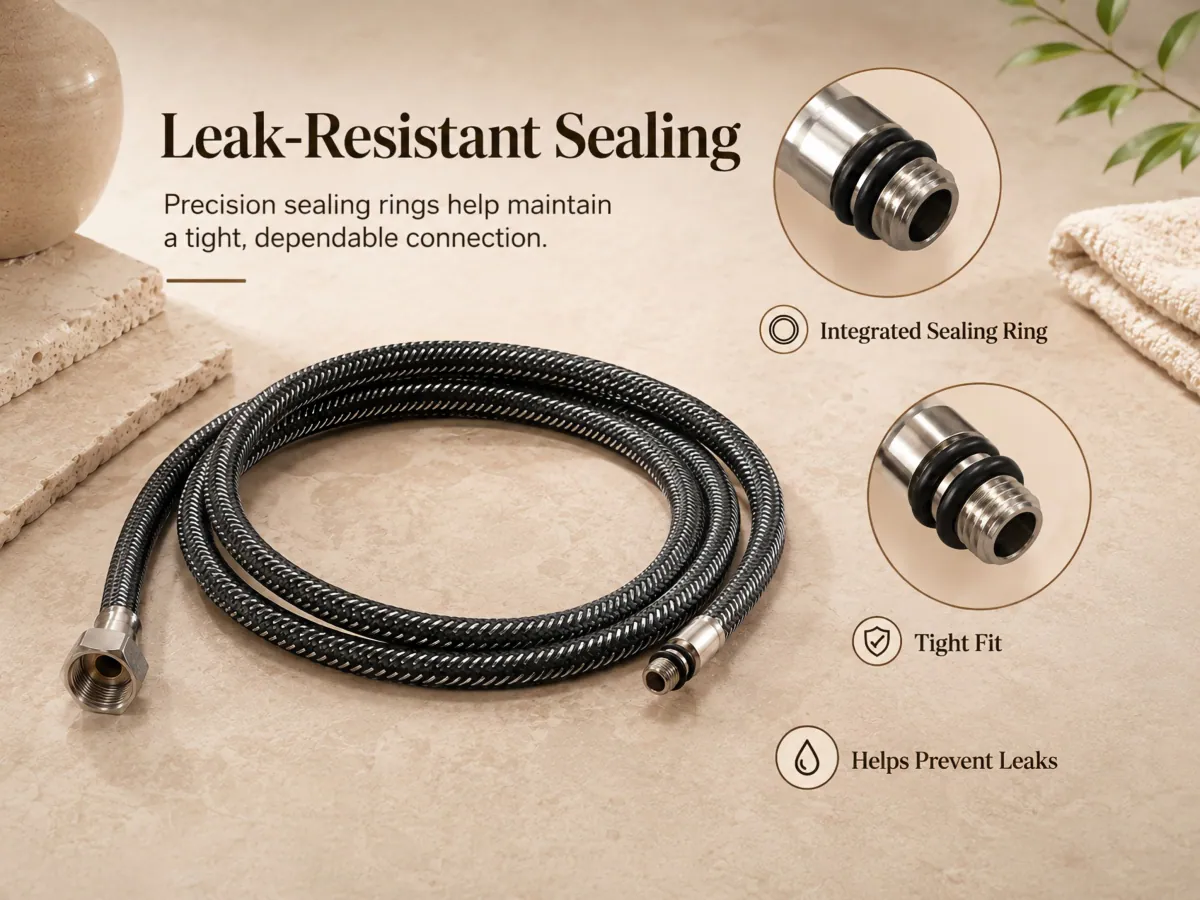

01 / 05Flexible EPDM Water Line
An EPDM inner tube follows the routing path while carrying hot or cold water to the mixer.

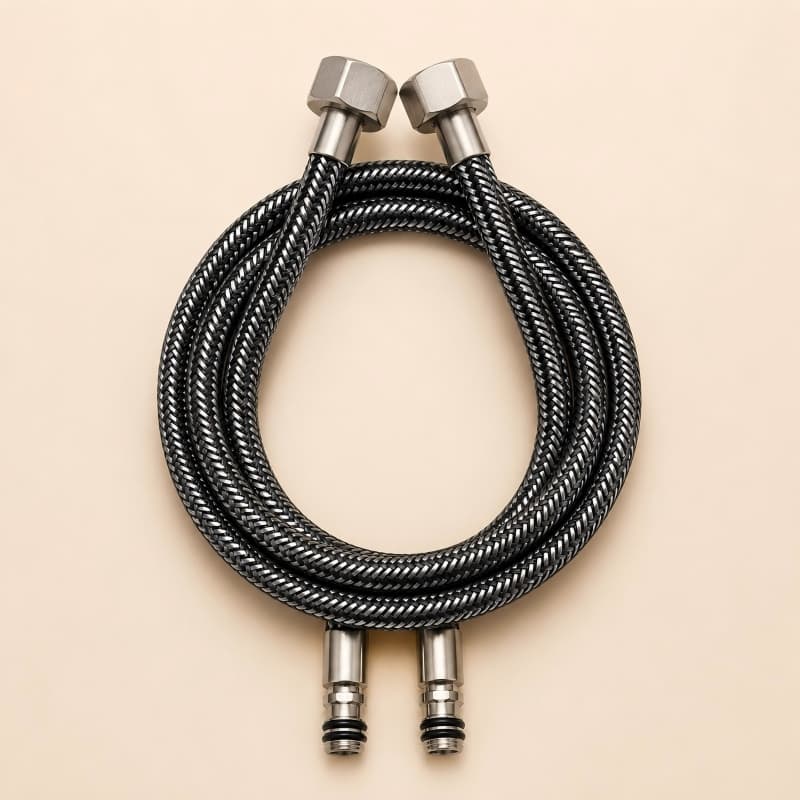

Two Different Connector Ends
M10 male and G1/2 female fittings match the unequal connection layout used by compatible faucets.
Six Standard Lengths
The offered size range covers short cabinet runs as well as longer routes to the supply point.
Product presentation
Black Braided Hot and Cold Faucet Hose: Distinct Black Braided Finish
The faucet side uses an M10 brass male connector with a sealing ring. A G1/2 female hex nut forms the connection at the supply end. Iron or copper caps are used around the joints, and the pointed connector section is brass.
Technical specifications
Technical details for buyer comparison.
Compare the product configuration with your installation and sourcing requirements, then share the order details for a tailored quotation.
Send your target order details →Product TypeHot and Cold Faucet Hose
Outer BraidAluminum Wire and Black Nylon
Inner TubeEPDM
Faucet EndM10 Brass Male with Seal
Supply EndG1/2 Female Hex Nut
Working Pressure0.8-1.0 MPa
Burst Pressure>=2.5 MPa
Applicable Temperature0-80 °C
Length Options40/50/60/80/100/120 cm
ApplicationBasin and Kitchen Faucets
Compare the range
Compare closely related products.
Review the current model beside published alternatives from the same subcategory. When fewer matches are available, the selection expands within Water, Drainage & Hoses.
Technical comparisonModel-specific details can be discussed in your enquiry.
Current productFYS-78
Black Braided Hot and Cold Faucet Hose
Flexible HosesFYS-73
304 Stainless Steel Braided Water Inlet Hose
Flexible HosesFYS-74
304 Stainless Steel Double-End Shower Hose
Product Type
Hot and Cold Faucet Hose
Water Inlet Hose
Double-End Shower Hose
Inner Tube
EPDM
EPDM
Ask sales
Application
Basin and Kitchen Faucets
Multiple Water Fixtures
Ask sales
Structure
Ask sales
Braided Hose
Flexible Metal Coil
Outer Braid
Aluminum Wire and Black Nylon
Ask sales
Ask sales
Faucet End
M10 Brass Male with Seal
Ask sales
Ask sales
Continue browsing
View all products ↗Explore other product categories.
Showers & Shower SystemsFYS-01
High Pressure Single Function Shower Head
Exposed Showers
Faucets & MixersFYS-19
Single Cold Basin Faucet
Basin Faucets
Valves, Bidets & Commercial WashroomFYS-39
Quick-Open Angle Valve
Quick-Open Angle Valves
Toilets & Squat PansFYS-82
Dual-Flush One-Piece Siphonic Toilet
One-Piece Toilets
Buyer applications
A focused platform for repeatable sourcing programs.
Review the applicable sourcing programs and configurable OEM options for this product.
Suitable for
- Faucet and fixture water connections
- Bathroom and kitchen plumbing work
- Wholesale hose assortments
OEM options
- Ask about OEM scope for the selected product configuration.
Product RFQ
Tell us what this product needs to achieve.
Reference 78 is attached automatically. Add your quantity, destination market, compliance needs, target cost, packaging and schedule.
Buyer FAQ
Questions buyers ask before ordering.
Which connector goes into the faucet body?
Use the M10 brass male end with its seal at the compatible faucet connection.
What pressure applies during normal use?
The working range is 0.8-1.0 MPa, and the minimum burst rating is 2.5 MPa.
Is the outside braid stainless steel?
No. This version uses aluminum wire combined with black nylon.
Which hose lengths can be selected?
The standard choices are 40, 50, 60, 80, 100 and 120 cm.
Where is this hose intended to be used?
It is intended for compatible hot- and cold-water basin or kitchen faucets.
